Mic connections on Maestro

charlesjacobsen
charlesjacobsen Member ✭✭
in Maestro

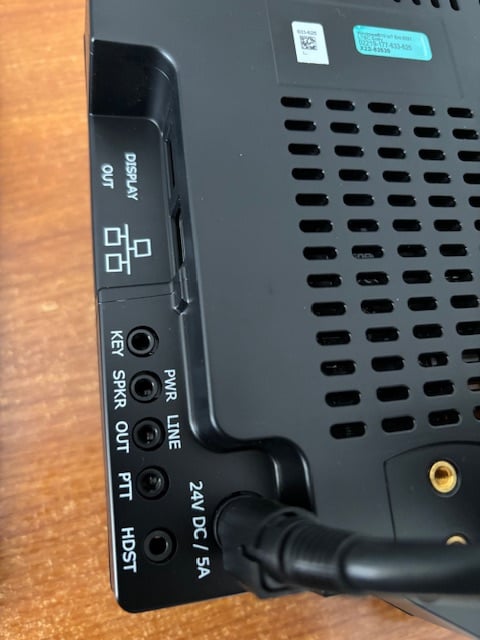

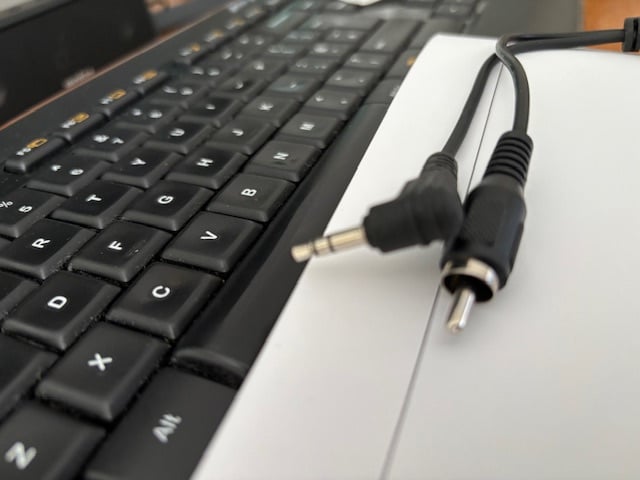

Maestro.jpg Plugsjpg.jpg

Answers

  • charlesjacobsen
    charlesjacobsen Member ✭✭

    Ah, I haven't mastered the art of sending photos with my questions. I am just as confused on putting plugs into the Maestro. I saw a few earlier posts on this topic, but they seemed to be different from my position. Could somebody please tell me what goes where? I assume I need an adapter of some kind but that is as far as I have got.

    Many thanks.

  • Al K0VM
    Al K0VM Member ✭✭✭
    edited July 18

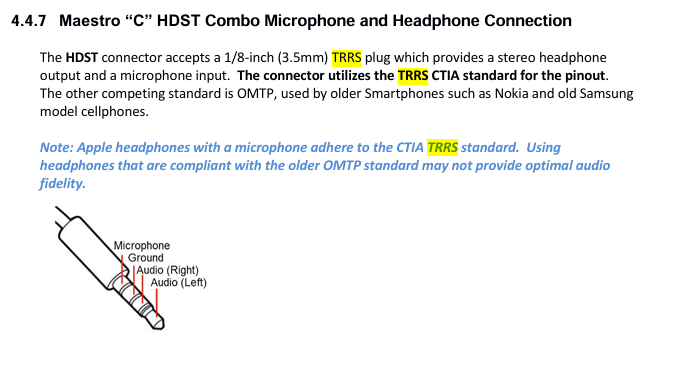

    From the Maestro users Guide rev 3.7.3

    Screenshot 2025-07-18 110351.png

    If that was a Flex supplied headset, they sent the wrong one.. Open a help desk ticket.

    AL, K0VM

  • Mike-VA3MW
    Mike-VA3MW Administrator, FlexRadio Employee, Community Manager, Super Elmer, Moderator admin
    https://www.flexradio.com/documentation/maestro-c-microphone-interfacing-guide
  • David Decoons, wo2x
    David Decoons, wo2x Member, Super Elmer Moderator

    you need the Y cable kit for Maestro C in order to use the FHM-3 hand mic

    73 Dave wo2x

  • charlesjacobsen
    charlesjacobsen Member ✭✭

    Thanks to both for your help. I shall persevere.

    Charles MM0XFZ
