Anyone having issue's using RXA receive antennas?

k4em
k4em Member, Unconfirmed ✭✭
in Community Topics

Is anyone getting distortion in the panadapter/waterfall when using a dedicated receive antenna? If you're using 100w to 1500w, basically at any power level.

Dave

k4em

Comments

  • n0mdh
    n0mdh Member ✭✭

    I have a W6LVP receive loop on RXA separated by about 60 feet from a G5RV Jr. The G5RV Jr. is driven by a 6600M or a 6300, so a max of 100W. I have not observed distortion effects in the pan adapter when transmitting. I have the null of the loop pointed at the TX antenna.

    How far is your RX antenna from the TX antenna?

  • Mike-VA3MW
    Mike-VA3MW Administrator, FlexRadio Employee, Community Manager, Super Elmer, Moderator admin

    Dave, can you share a screen shot of what you are seeing please.

  • John KB4DU
    John KB4DU Member ✭✭✭✭

    And some description of the antenna setup? Type, distance between, directionality, etc.

  • Dan Trainor
    Dan Trainor Member ✭✭✭

    I also have a W6LVP receive loop on RXA. I have it mounted on a 4ft tripod. It came with the optional T/R switch which is controlled by RCA TX1. The T/R switch disconnects and grounds the RXA input such that it can not be overloaded by RF during TX. Works good. I use it on higher bands with +8 to +16db pre amp setting. I can achieve a higher S/N in most cases. Loop On the Ground (LoG) is another good RX antenna - 60ft square, 15ft on each side laying on the ground. Very quiet. Dan WA1QZX.

  • John KB4DU
    John KB4DU Member ✭✭✭✭

    I also use a Loop on Ground. Only effective one at the previous QTH next to an Army post. Also less affected by TX. Only drawback I noticed is variable directionality.

  • k4em
    k4em Member, Unconfirmed ✭✭
    edited 3:25PM

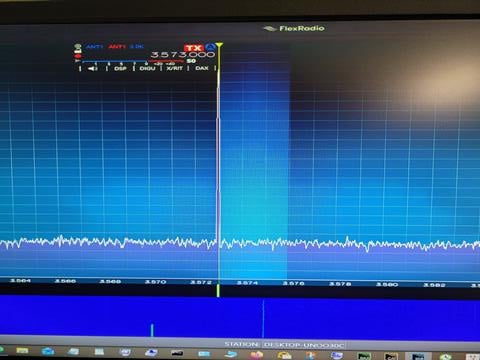

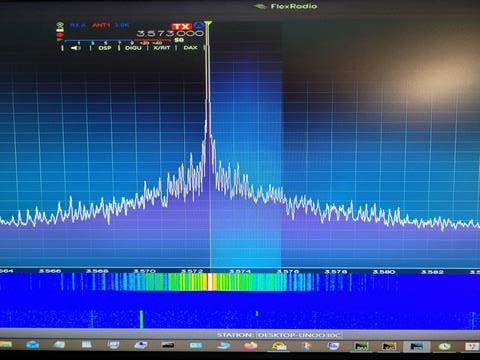

    Here are some Pics of a normal display and a distorted one. This occurs on any band, any antenna any power level.

    Dave

    k4em

    PS I tried to post some pics, from my computer and phone,in several different formats; jpg, bmp, png, and get a permission error.

  • KD0RC
    KD0RC Member, Super Elmer Moderator

    Hi Dave, if you send the pics to my QRZ email, I will post them here for you. Once you have more activity here, the automatic anti-spam thing will let you post pics.

  • KD0RC
    KD0RC Member, Super Elmer Moderator

    Here are the pictures that Dave sent:

    distortion.jpg normal.jpg
