8xxx series GPS status

NE4W
NE4W Member ✭
in SmartSDR for Mac
Any way to see the satellite status...if there is a lock, etc.?

Answers

  • KD0RC
    KD0RC Member, Super Elmer Moderator

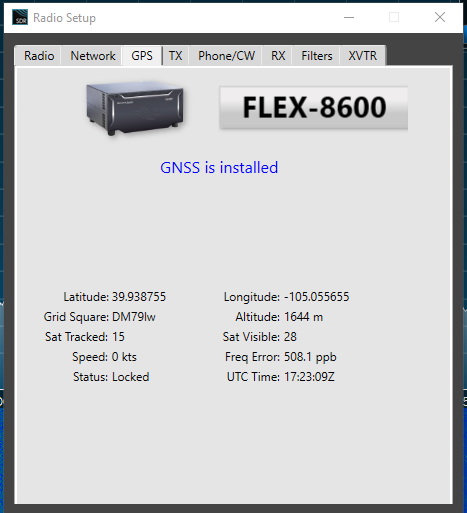

    In SmartSDR, go to Settings, Radio Setup…, GPS tab.

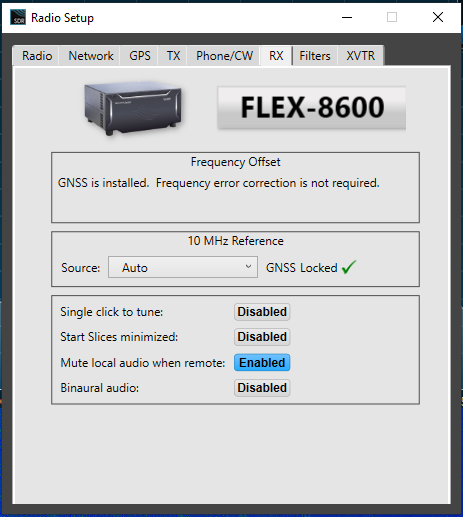

    Then on the RX tab:

  • K3CDY
    K3CDY Member ✭✭✭
    edited November 2025

    Not sure if you're on a Mac, but you'll see the equivalent that Len depicts above under the "Radio" settings in SmartSDR for Mac.

    And even easier, you know you're locked when the power indicator turns blue. According to the Flex H/W manual: SOLID BLUE = GPS/GNSS-DO is locked.

  • NE4W
    NE4W Member ✭
    @K3CDY Hi Bill - Yes I'm on the macOS SmartSDR client but Radio > Flex 8400 Settings does not show any GPS tab or info at all that I can see. I've clicked every tab I can find!
  • W8TZ Ross
    W8TZ Ross Member ✭✭
    edited November 2025

    Pretty sure the 8400 does not have the Integrated 12-channel GNSS Receiver option. However I think you can install the optional GPSDO.

  • n0ypd
    n0ypd Member ✭✭

    It should be in the menu,sub tab GPS,and for GNSS lock is under radio tab,all in the menu. My 8400m has it.

  • Trucker
    Trucker Member ✭✭✭✭

    All of the 8000 radios have the GNSS receiver built-in.

    James

    WD5GWY
