Antenna switch not receiving BCD Data
I recently purchased a Flex 8600. As part of setting it up, I bought a C232HM-EDHSL-0 USB cable to send BCD data from the USB port on the back of the 8600 to my homebrew antenna switch. It worked perfectly. I could not believe how easy it was to set up. My antenna switch is an Array Solutions Rat Pak with United Microsystems BCD-14 and HSD-9 boards added for automation.
After a couple of weeks of experimenting with the radio, I had explored many settings to learn the ins and outs. I also discovered that I had overwritten some of the microphone profiles. I decided to perform a factory reset now that I know what I'm doing.

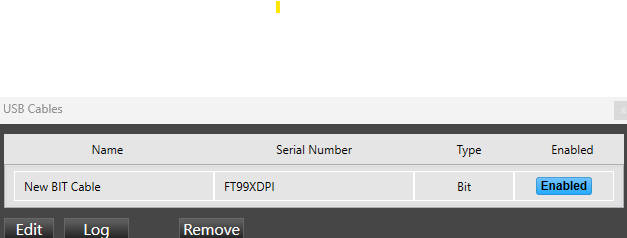

Everything is working fine, except that the antenna switch is no longer receiving BCD data. I checked the USB cable setting, and it is as shown.
My thought is that I am missing some detail to have the radio send the BCD data through the USB cable to the antenna switch.
As an aside, I used this same setup with a Yaesu FTdx101D for several years with no issues.
Thanks in advance for any help with this.
Howard N8HO
Answers
-
I thought of something else that may be affecting my BCD issue. I also performed a factory reset on my TGXL to clear the memories so I could start over again.
Howard N8HO
0 -
Hi Howard, can you select the cable, click the edit button and send a screenshot of that pop up window? You may have an issue there.
0 -
edit the cable and change from BIT to BCD. Happens to me when I factory reset.
73
Dave wo2x
0 -

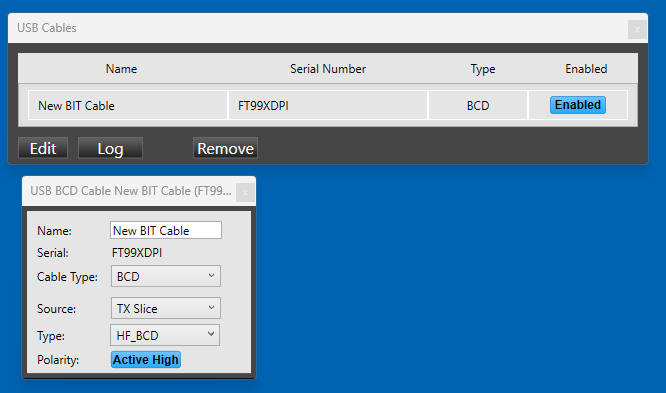

Thanks, Dave. I neglected to change the default cable type from BIT to BCD. If anyone else has this issue, here is a screenshot of the proper setup.
0 -
Nice catch Dave!
0 -
it bit me last weekend when I downgraded my radio to 3.9.18 for use at the show in Germany. I was in a rush and reset the radio, not thinking the bandpass filters needed BCD. Wondering why the bands were “dead”. Changed it the next day from BIT to BCD. I put a reminder next to the radio power button for next time I factory reset the radio.
:-/
73 Dave wo2x
0
