How do I set up vertial "slices" on my Flex 8600?

Pote2004
Pote2004 Member ✭✭
in SmartSDR for Windows

I know I don't understand how to do everything on my new radio but I think the written manual is very vague on specifics and loaded with technical jargon and theory. I want to know what I click on in the smart SDR screen to set up more than one slice

Answers

  • KD0RC
    KD0RC Member, Super Elmer Moderator

    If you want to add a slice to an existing panadapter, right-click in the panadapter or waterfall area and select Create Slice.

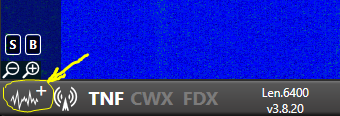

    If you want to add a panadapter, click on the little panadapter icon in the lower left corner of SmartSDR.

  • Neil D Friedman N3DF
    Neil D Friedman N3DF Member ✭✭✭✭

    Sounds like you may be reading the 8000 series hardware reference manual, rather than the SmartSDR v3 software user guide.

  • KD0RC
    KD0RC Member, Super Elmer Moderator

    Good catch, Neil. @Pote2004, here is a link to the Software User Guide:

    https://www.flexradio.com/documentation/smartsdr-software-user-guide-pdf/

    Check out section 12 (page 37) for info on operating a slice receiver.
