Dummy Load setup?

Options
Jim NO0B
Jim NO0B Member ✭
in Antenna Genius
I have antenna 8 connected to the dummy load. In the Antenna Settings it is Custom 1 and has checks in None RX and RX and TX on the line for Custom 1. Should I check RX and TX for every band the radio can tune to, or continue to leave them blank?

Answers

  • KD0RC
    KD0RC Member, Super Elmer Moderator
    Options

    Hi Jim, I assume that you are talking about an Antenna Genius connected to a Flex 6000, 8000 or Aurora radio.

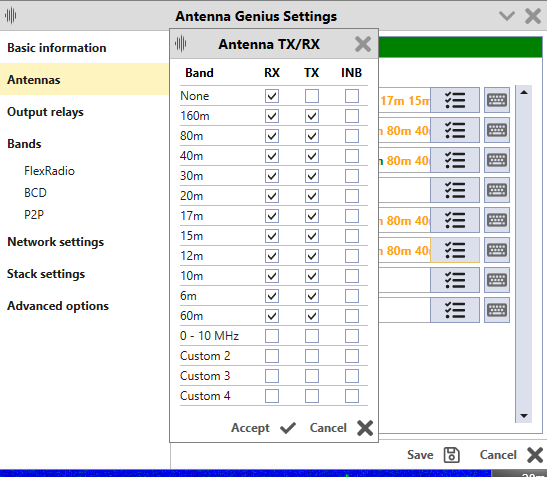

    Here is how I have my dummy load set up on my 8x2 Antenna Genius:
