Please Info/Manual SMARTSDR 4.2.20 for N1MM

Options
Cees
Cees Member ✭✭
in Third-Party Software

Who can help me find an installation manual for SmartSDR CAT v4.2.20 in conjunction with N1MM?

Unfortunately, Mike's video about this product is not up to date and is based on a version older than version V2.

Cees PA3CVI

Answers

  • Mike-VA3MW
    Mike-VA3MW Administrator, FlexRadio Employee, Community Manager, Super Elmer, Moderator admin
    edited August 19
    Options

    The video, while old, is still current other than using the New DAX names. Nothing else has changed.

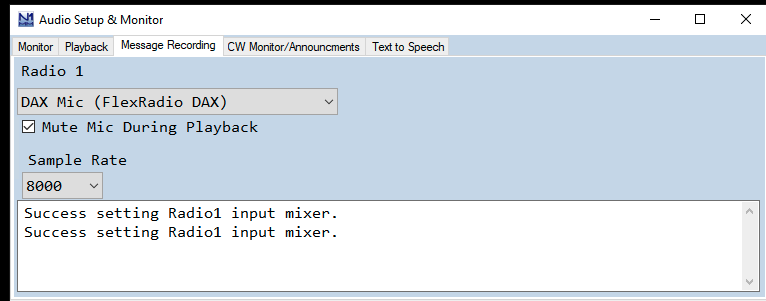

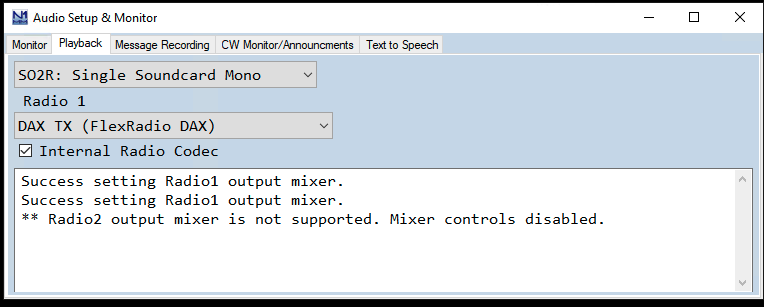

    I don't do record on the fly, but this should get you going. The "Internal Radio Codec" is critical to ensure that DAX is toggled on and off as required.

    Others may wish to share their more correct settings.

    image.png image.png
  • Cees
    Cees Member ✭✭
    Options

    Thanks for info, Mike.
